Infrared Detector Systems

M615-f800

Long-Focal MWIR Detector System

M615-f800 delivers cooled MWIR imaging as a complete detector-system platform.

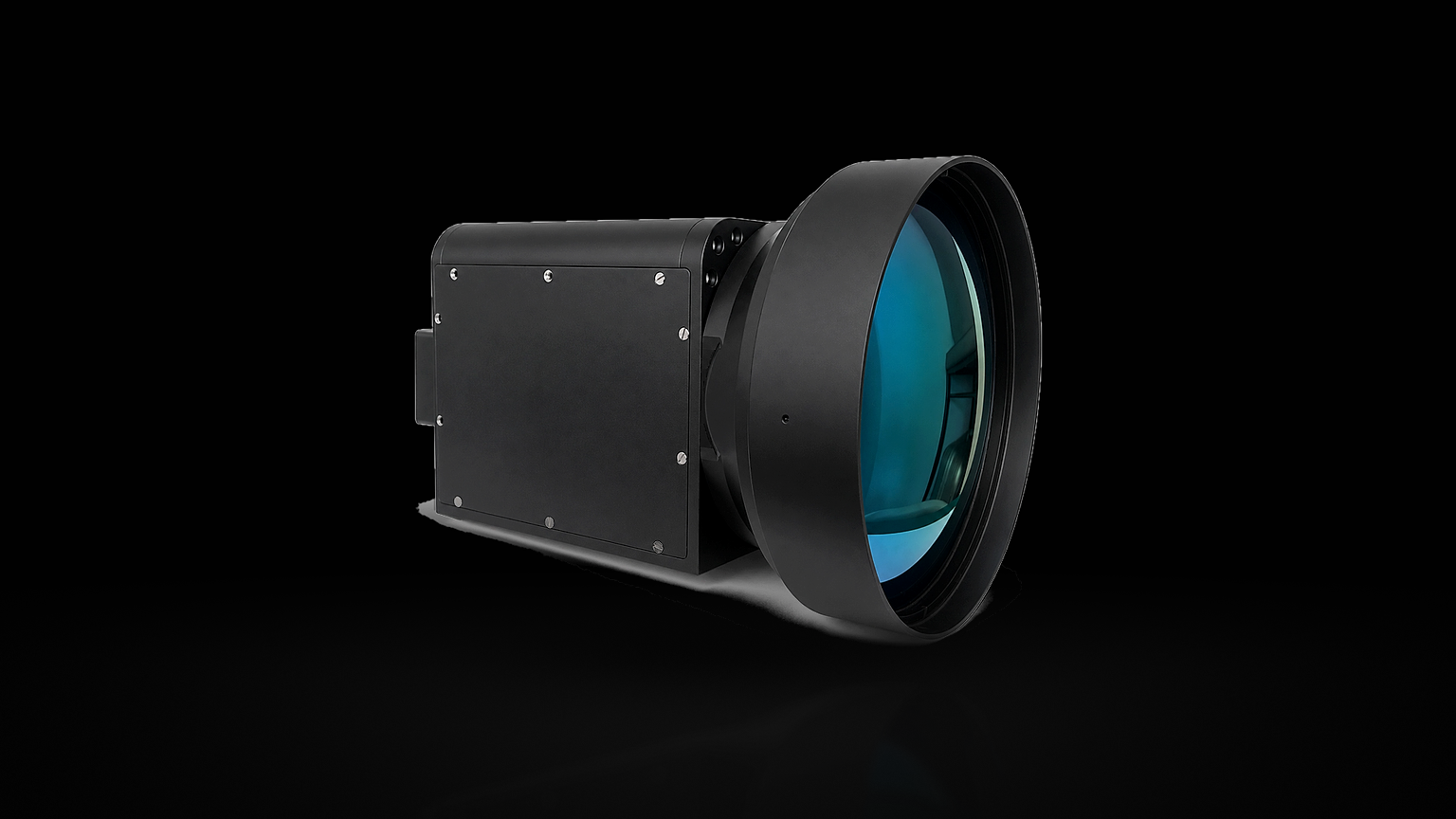

M615-f800 product photograph
Resolution640 × 512
Pixel pitch15 μm
Spectral range3.7–4.8 μm
NETD≤18 mK
F-numberF/4

01 / Product introduction

Product introduction

M615-f800 is a long-focal mwir detector system combining 640 × 512 imaging, 15 μm pixels and a 3.7–4.8 μm response band. The page emphasizes application value, optical fit and system interfaces instead of exposing a dense engineering table.

02 / Core application scenarios

Core application scenarios

01
Gas leak imaging
02
Industrial process monitoring
03
Long-range thermal imaging

03 / Core advantages

Core advantages

01
System-level readinessDetector, cooling, optics and electronics are delivered in one evaluated architecture.
02
Defined optical fitF-number and spectral band clarify the intended imaging task.
03
OEM connectivityControl, video and power interfaces are visible before detailed engineering review.

04 / Core technical specifications

Core technical specifications

Resolution
640 × 512
Pixel pitch
15 μm
Spectral range
3.7–4.8 μm
NETD
≤18 mK
F-number
F/4
Input
24 VDC
Control
RS422
Video outputs
Camera Link / PAL / SDI
Envelope
319 × 216 × 216 mm

04 / Project integration

Integration essentials

Input
24 VDC
Control
RS422
Video outputs
Camera Link / PAL / SDI
Envelope
319 × 216 × 216 mm
