M615

MWIR Imaging Core

Modular integration at its core · Intelligent image processing | The processing brain for high-end civil electro-optical systems.

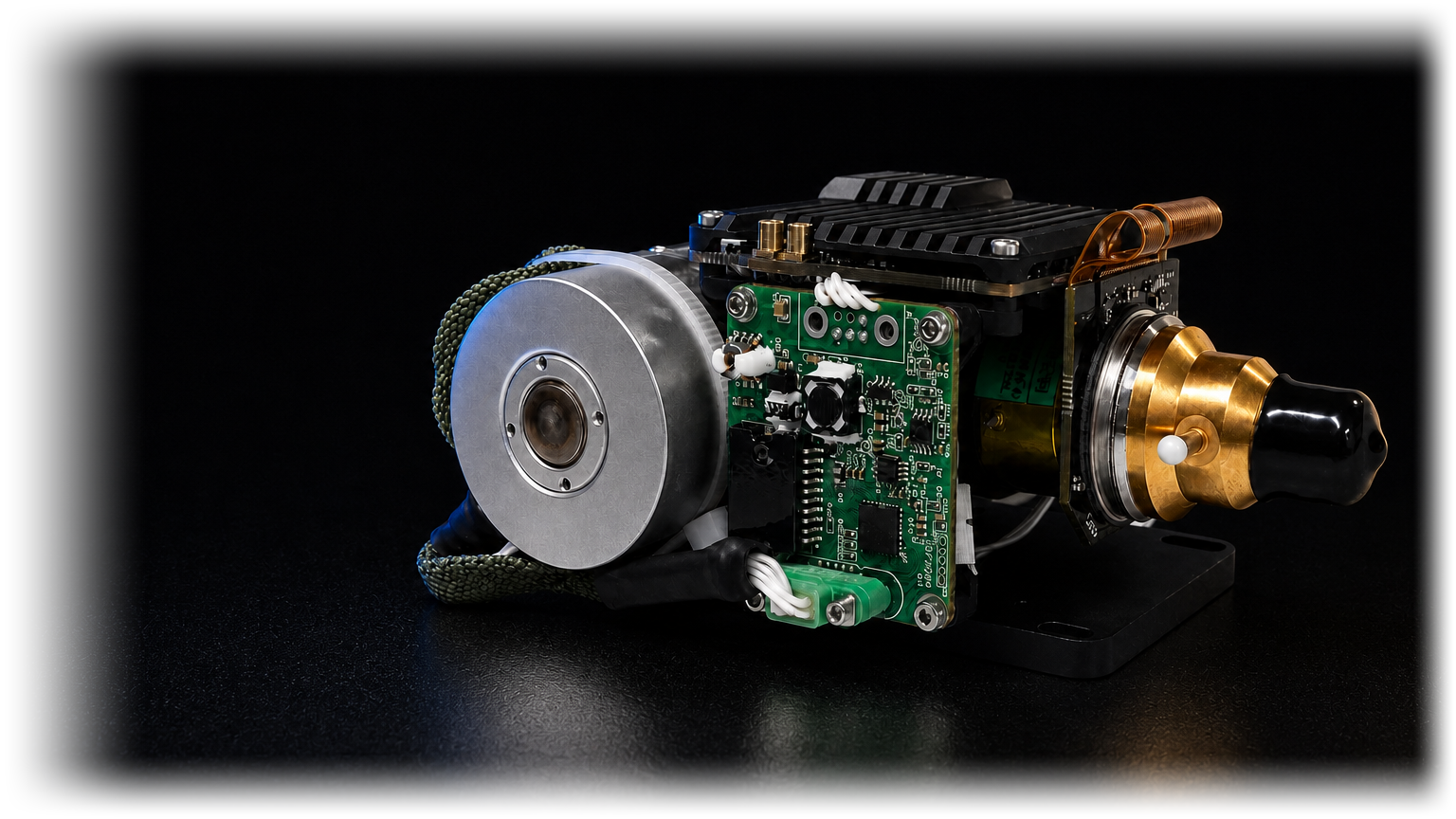

M615 product photograph
Resolution640 × 512
Pixel pitch15 μm
Spectral range3.7–4.8 μm
NETD≤18 mK
Frame rate50 Hz

01 / Product introduction

Product introduction

This core pairs a 640 × 512 / 15 μm high-sensitivity cooled MWIR detector with an efficient miniature Stirling cooler and an ultra-compact image-processing board, delivering a highly integrated imaging module. Adaptive non-uniformity correction (NUC), digital detail enhancement (DDE) and 3D noise reduction are embedded within the core, so it outputs high-definition, high-contrast thermal imagery directly. A full set of digital video and communication interfaces makes it a one-stop integration solution for high-end civil UAV gimbals, explosion-proof petrochemical gas monitors and industrial NDT systems.

02 / Core application scenarios

Core application scenarios

01
High-end civil UAV and gimbal integrationForest-fire patrol, high-altitude power-line inspection, long-range ecological protection and aerial emergency response.
02
Petrochemical and hazardous-gas monitoringExplosion-proof VOC and methane leak detectors, and 24-hour online monitoring systems for storage tanks and pipelines.
03
Industrial NDT and automationThermal-defect scanning of semiconductor wafers and microelectronic chips, composite thermal-stress analysis and online kiln thermography.
04
Smart campus and perimeter electro-optical systemsMajor port and airport perimeter protection, intelligent-traffic monitoring and long-range night-vision equipment.

03 / Core advantages

Core advantages

01
Fully integrated moduleDetector, cooler, drive control and image-processing board in one unit with standardised interfaces and protocols, substantially shortening customer development and system assembly time.
02
Advanced image algorithmsBuilt-in adaptive non-uniformity correction, high-dynamic-range compression and 3D noise reduction remove noise and fixed-pattern artefacts, keeping subtle thermal faults clearly visible.
03
High sensitivity and fine detailAn NETD of ≤18 mK with operability of ≥99.7% images small thermal anomalies and low-concentration gas plumes accurately.
04
Rich interfaces, dependable operationCameraLink, PAL and SDI video outputs with RS-422 serial control, in a 450 g core drawing ≤15 W in steady state.

04 / Core technical specifications

Core technical specifications

Resolution
640 × 512
Pixel pitch
15 μm
Spectral range
3.7–4.8 μm
NETD
≤18 mK
Frame rate
50 Hz
Control
RS422
Video outputs
Camera Link / PAL / SDI
Weight
450 g
Envelope
71 × 119 × 59 mm

04 / Project integration

Integration essentials

Control
RS422
Video outputs
Camera Link / PAL / SDI
Weight
450 g
Envelope
71 × 119 × 59 mm
