CX-CJ-OPO

Laser Rangefinder Module

CX-CJ-OPO combines eye-safe wavelength operation with compact, serial-connected ranging.

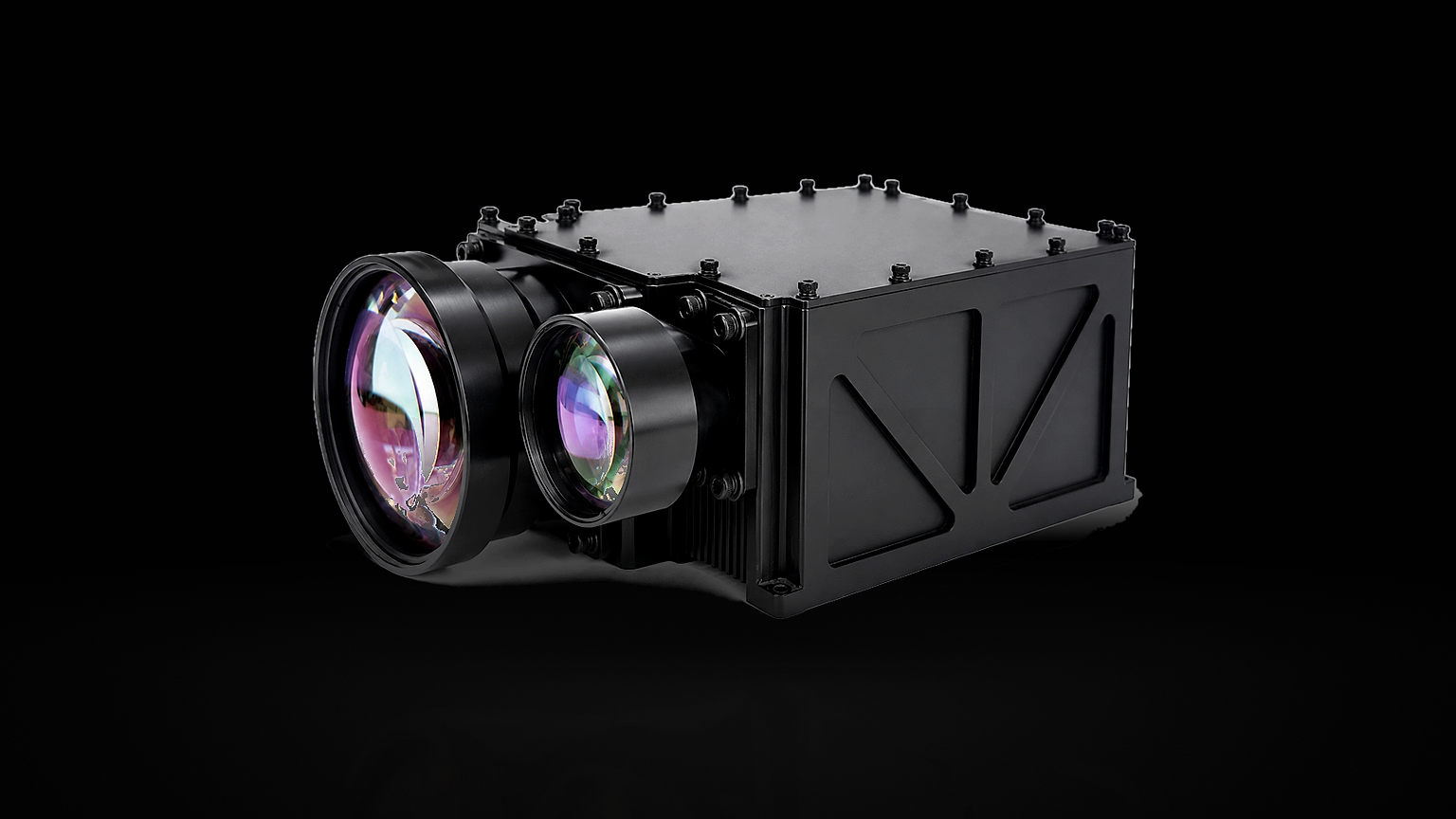

CX-CJ-OPO product photograph
Wavelength1570 ± 10 nm
Minimum range—
Maximum range≥5 km
Accuracy<±3 m RMS
Rate1–25 Hz

01 / Product introduction

Product introduction

CX-CJ-OPO is a compact rangefinder module specified around 1570 ± 10 nm operation, — minimum range and ≥5 km maximum range. Procurement-facing information focuses on range, accuracy, interface and system envelope.

02 / Core application scenarios

Core application scenarios

01
Industrial distance measurement
02
Surveying and mapping systems
03
OEM optoelectronic integration

03 / Core advantages

Core advantages

01
Eye-safe wavelengthThe defined infrared wavelength supports compact distance-measurement systems.
02
Clear ranging envelopeMinimum range, maximum range and accuracy are visible together.
03
Compact serial integrationPower, serial interface, weight and envelope support direct OEM fit review.

04 / Core technical specifications

Core technical specifications

Wavelength
1570 ± 10 nm
Minimum range
—
Maximum range
≥5 km
Accuracy
<±3 m RMS
Rate
1–25 Hz
Interface
RS-422
Input
DC 24 V
Weight
≤2.6 kg
Envelope
214 × 125 × 82 mm

04 / Project integration

Integration essentials

Interface
RS-422
Input
DC 24 V
Weight
≤2.6 kg
Envelope
214 × 125 × 82 mm
