CX-CJ-6KM

Laser Rangefinder Module

Eye-safe 1535 nm · 6 km precision ranging | For civil UAVs, wide-area survey and smart power inspection.

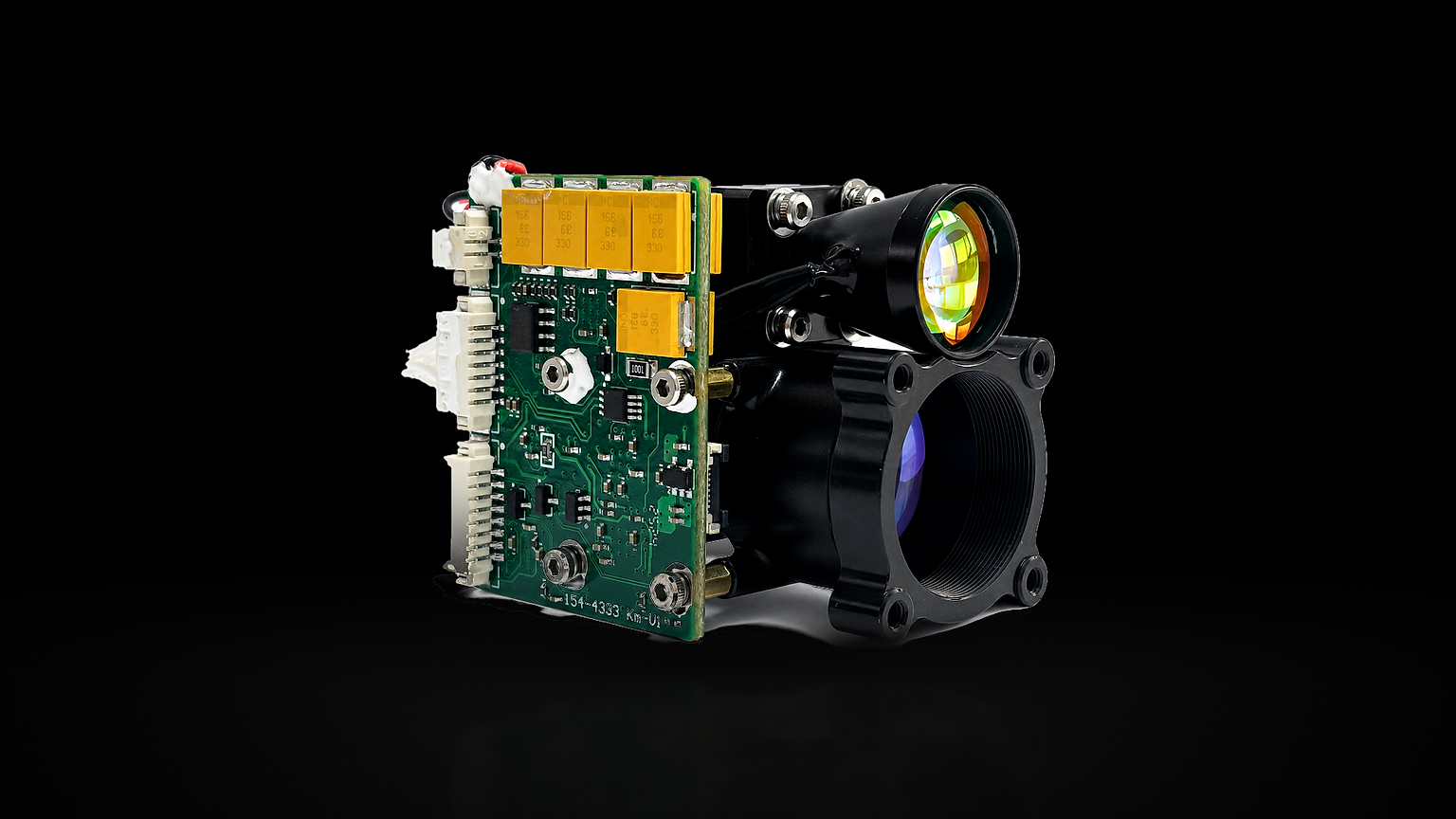

CX-CJ-6KM product photograph
Wavelength1535 ± 5 nm
Minimum range<30 m
Maximum range≥6 km
Accuracy<±1 m RMS
Rate1–10 Hz

01 / Product introduction

Product introduction

A high-performance long-range ranging module built around a 1535 nm eye-safe erbium-glass laser. It reaches beyond 6 km against large structures and terrain while holding ±1 m accuracy, and its tightened ≤0.3 mrad divergence keeps the spot small enough to discriminate distant targets. At <55 g with an RS-422 interface, it integrates into civil UAV gimbals, handheld observation optics, industrial inspection equipment and smart security systems.

02 / Core application scenarios

Core application scenarios

01
Civil UAVs and electro-optical gimbalsVery-long-range power-line inspection, wide-area GIS surveying, long-range forest-fire sensing, and target coordinate and distance measurement in disaster response.
02
Infrastructure and large-scale engineering monitoringMicro-deformation monitoring of major bridges, dams and high-rise structures, open-pit mine terrain and stockpile surveys, and long-range transmission-tower clearance measurement.
03
Smart security and campus managementPerimeter protection across very large sites, and long-range civil target monitoring at airports, ports and coastlines.
04
Meteorological and ecological researchHigh-altitude meteorological sensing, cloud-base and aerosol height measurement, and undisturbed long-range wildlife observation in reserves.

03 / Core advantages

Core advantages

01
1535 nm eye-safe operationThe 1535 nm band meets Class 1 eye-safety requirements, allowing safe measurement in public spaces and across civil applications.
02
6 km reach with ±1 m accuracyRanges to 6000 m against large structures and natural terrain with accuracy of <±1 m RMS and a selectable 1–10 Hz update rate.
03
Narrow beam for distant targetsA ≤0.3 mrad divergence keeps the spot tight at long range, improving discrimination of small distant targets.
04
Light and efficientA <55 g module drawing ≤3 W average extends endurance on battery-powered platforms, with operation from −40 to +70 °C.

04 / Core technical specifications

Core technical specifications

Wavelength
1535 ± 5 nm
Minimum range
<30 m
Maximum range
≥6 km
Accuracy
<±1 m RMS
Rate
1–10 Hz
Interface
RS-422
Input
DC 12 V
Weight
<55 g
Envelope
≤65 × 40 × 28 mm

04 / Project integration

Integration essentials

Interface
RS-422
Input
DC 12 V
Weight
<55 g
Envelope
≤65 × 40 × 28 mm
