Infrared Detectors

CS1215M/R59A

Large-Format Cooled MWIR Detector

15 μm large pixel · 1280 × 1024 resolution | The thermal core for precision industrial measurement and long-range monitoring.

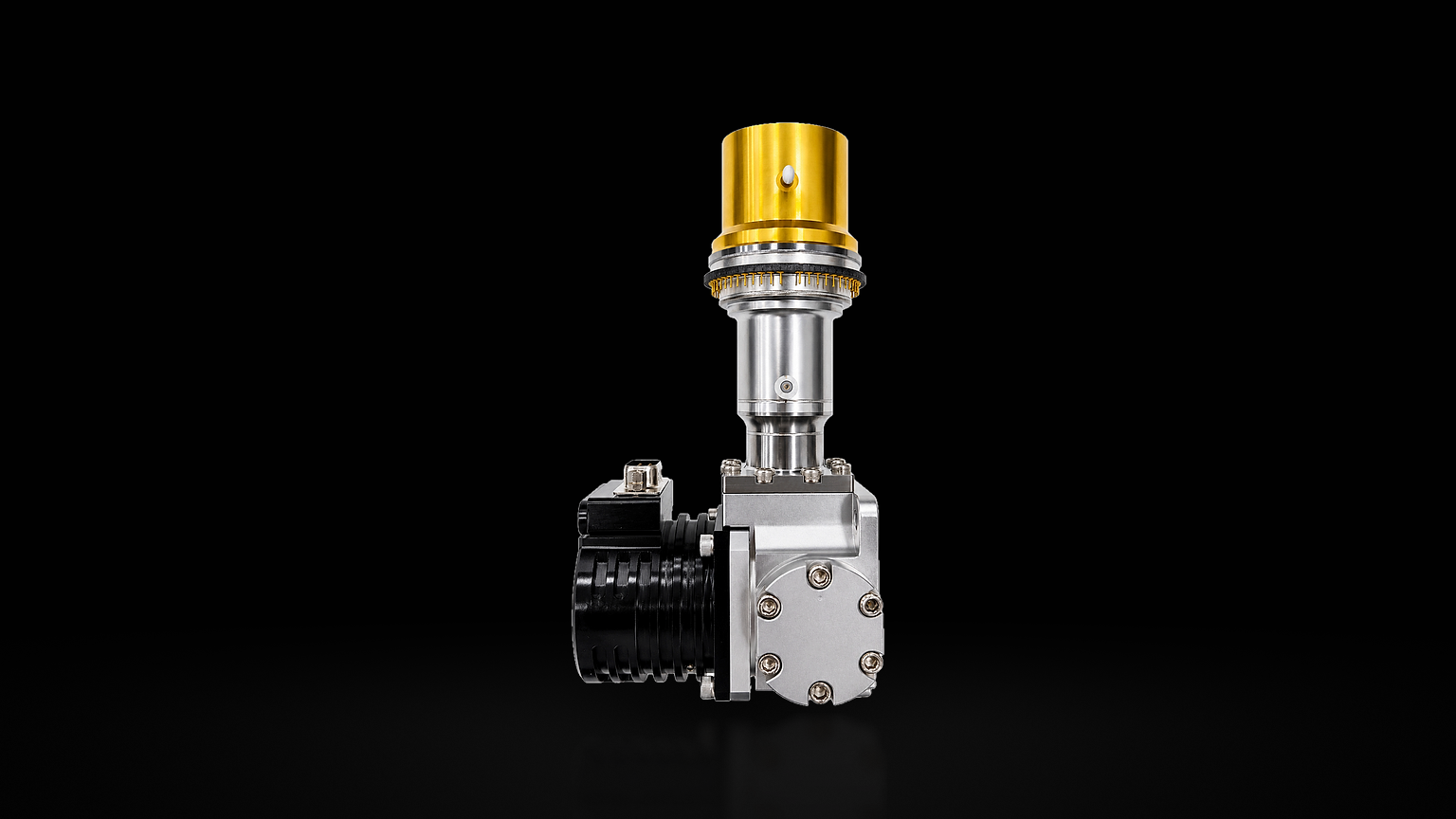

CS1215M/R59A product photograph
Resolution1280 × 1024
Pixel pitch15 μm
Spectral range3.7–4.8 μm
NETD≤18 mK
Frame rate50 / 100 Hz

01 / Product introduction

Product introduction

Built on type-II superlattice (T2SL) technology with a 15 μm pixel structure, this detector pairs a 1280 × 1024 large-format array with the strong photon-collection capability of a 15 μm pixel. Compared with smaller pixels it offers greater well capacity and signal-to-noise ratio, producing smoother, lower-noise and higher-contrast infrared imagery in high-dynamic-range and long-range observation. It is designed for high-end civil long-range surveillance, industrial NDT, petrochemical park monitoring and research-grade spectral analysis.

02 / Core application scenarios

Core application scenarios

01
High-end industrial NDT and researchPrecise localisation of wafer- and chip-level thermal defects, thermal-stress analysis of advanced composites, and laboratory thermal analysis and spectral imaging.
02
Petrochemical and high-hazard site monitoringLong-range gas and heat-source monitoring across large petrochemical parks, and online thermal-distribution imaging of furnaces and high-temperature reactors.
03
Long-range power and energy asset inspectionPrecise fault screening at substations and on transmission lines, plus rapid thermal-defect detection on wind and photovoltaic assets.
04
Civil aerial patrol and perimeter protectionWide-area high-altitude UAV patrol, airport perimeter protection, and coastline shipping and port safety monitoring.

03 / Core advantages

Core advantages

01
15 μm large pixel with megapixel formatHigh well capacity and signal-to-noise ratio combine with 1280 × 1024 resolution to deliver both wide coverage and fine detail.
02
High thermal sensitivityAn NETD of ≤18 mK gives keen sensitivity to temperature differences, making weak heat sources and small thermal defects clearly visible.
03
Wide dynamic range and high consistencyAn operability of ≥99.7% and response non-uniformity of ≤8% sustain image quality through sharp ambient-temperature swings.
04
Stable cooling for continuous dutySteady-state consumption of ≤6 W supports round-the-clock online monitoring.

04 / Core technical specifications

Core technical specifications

Resolution
1280 × 1024
Pixel pitch
15 μm
Spectral range
3.7–4.8 μm
NETD
≤18 mK
Frame rate
50 / 100 Hz
F-number
F/2 / F/4
Cooldown
≤6 min
Power
≤30 W peak
Weight
≤750 g

04 / Project integration

Integration essentials

F-number
F/2 / F/4
Cooldown
≤6 min
Power
≤30 W peak
Weight
≤750 g
