905-90W-PL

Four-Junction Pulsed Laser Chip

Four-junction epitaxy · 90 W peak output | A rugged source for long-range LiDAR and industrial automation.

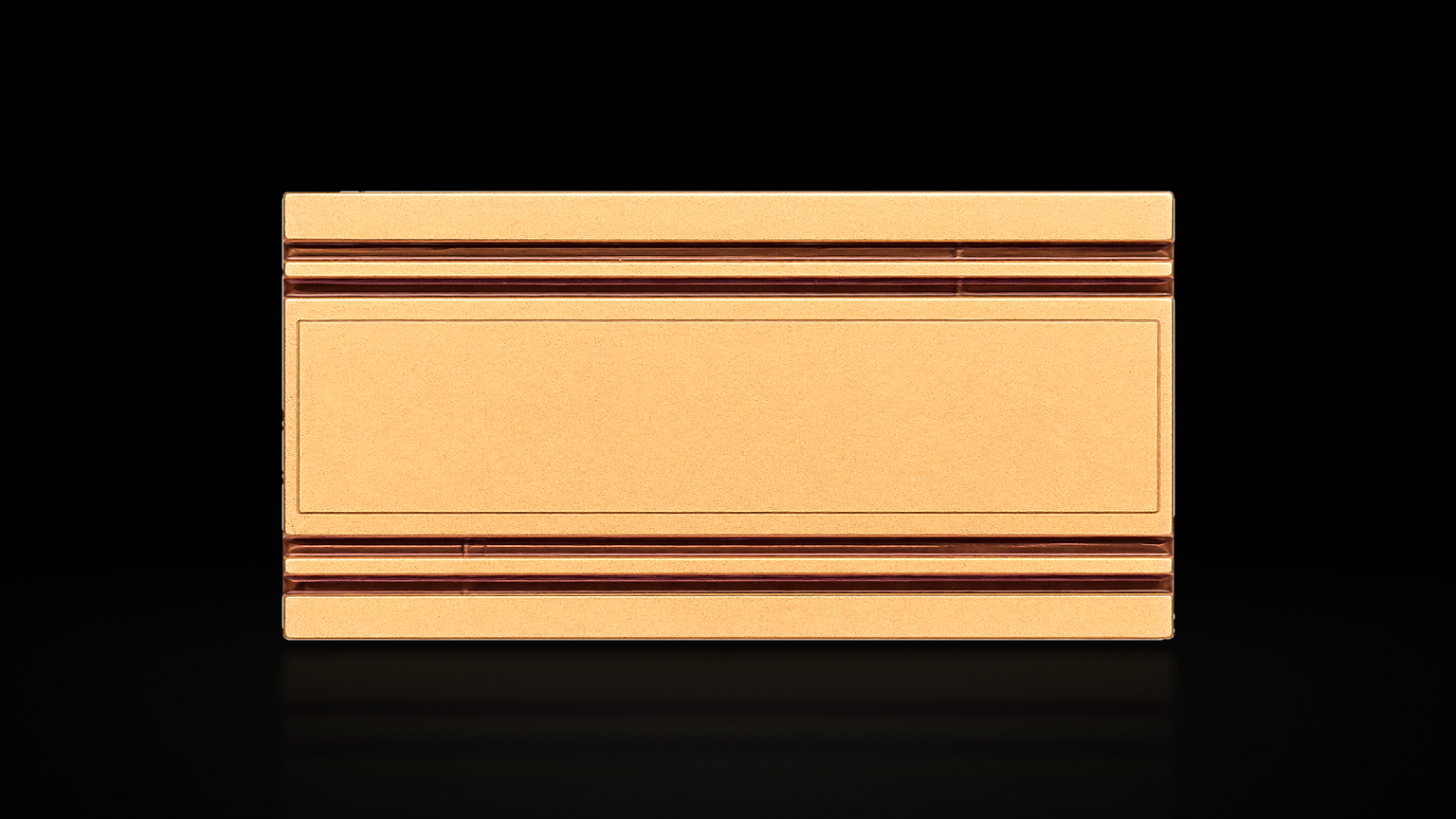

905-90W-PL product photograph
Wavelength905 ± 10 nm
Output90 W
Operating modePulsed
Spectral width7 nm FWHM
Pulse / duty100 ns / 0.1%

01 / Product introduction

Product introduction

This 905 nm four-junction pulsed laser chip stacks four active regions vertically and widens the emitter to 110 μm, raising peak pulse power to 90 W. It suits automotive ToF LiDAR and industrial sensing systems that need greater reach while retaining the compact geometry and fast response of the four-junction platform.

02 / Core application scenarios

Core application scenarios

01
Automotive and autonomous-driving LiDARHigh-precision time-of-flight (ToF) automotive LiDAR and obstacle-avoidance systems.
02
Industrial automation and roboticsIndustrial AMR/AGV navigation, automated machine control and machine-vision control.
03
Precision ranging and securityHandheld and fixed high-precision laser rangefinders, UAV ranging and perimeter security sensing.

03 / Core advantages

Core advantages

01
90 W peak pulse powerFour stacked active regions across a 110 μm emitting width deliver 90 W peak output at 25 A drive, extending sensing range and penetration.
02
Nanosecond pulse operation100 ns pulses at 0.1% duty cycle provide the time resolution needed for accurate depth measurement.
03
Excellent beam geometryDivergence of 22° fast axis and 8° slow axis with good spot uniformity supports efficient lens shaping and system collimation.
04
Wide-temperature reliabilityOptimised facet passivation and wafer processing built for demanding industrial and automotive environments across −15 to +85 °C.

04 / Core technical specifications

Core technical specifications

Wavelength
905 ± 10 nm
Output
90 W
Operating mode
Pulsed
Spectral width
7 nm FWHM
Pulse / duty
100 ns / 0.1%
Drive
25 A / 27 V
Thermal control
-15–85 °C
Package
Four-Junction Pulsed Laser Chip
Output interface
Free-space / package dependent

04 / Project integration

Integration essentials

Drive
25 A / 27 V
Thermal control
-15–85 °C
Package
Four-Junction Pulsed Laser Chip
Output interface
Free-space / package dependent
