905-15W-PL

Three-Junction Pulsed Laser Chip

Three-junction epitaxy · Narrow-pulse high power | Enabling automotive LiDAR and industrial sensing.

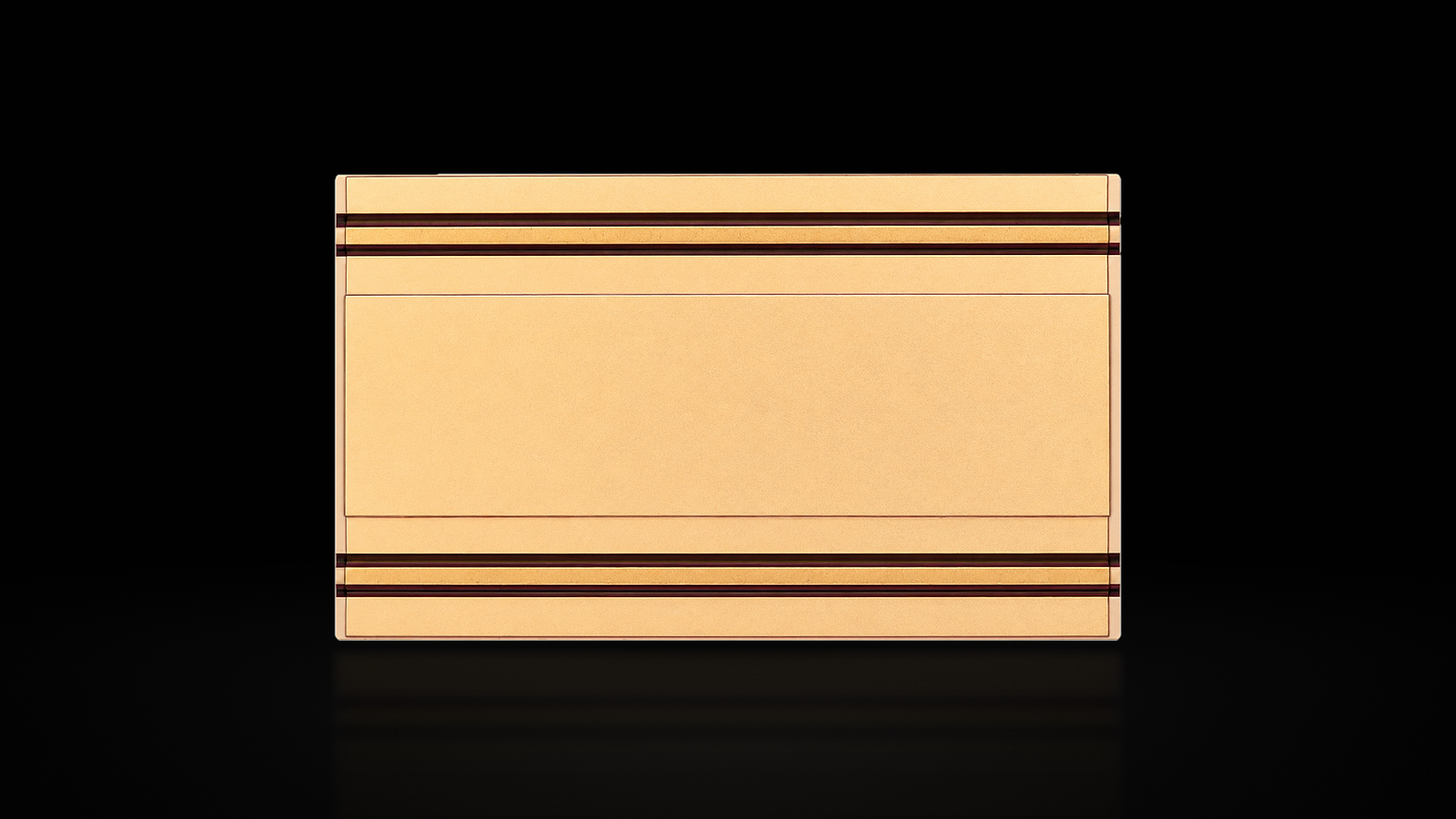

905-15W-PL product photograph
Wavelength905 ± 10 nm
Output15 W
Operating modePulsed
Spectral width7 nm FWHM
Pulse / duty100 ns / 0.1%

01 / Product introduction

Product introduction

This 905 nm three-junction pulsed laser chip stacks three active regions vertically, delivering roughly three times the peak optical power of a conventional single-junction chip from the same emitting area. Its high optical power density, fast response, high conversion efficiency and high-temperature stability make it a core source for automotive LiDAR, autonomous driving and precision industrial sensing.

02 / Core application scenarios

Core application scenarios

01
Automotive and autonomous-driving LiDARHigh-precision time-of-flight (ToF) LiDAR systems for vehicles.
02
Robot and UAV perceptionAGV/AMR warehouse-logistics robot navigation, UAV ranging and vision-based obstacle avoidance.
03
Industrial automation and safetyAutomated machine control, perimeter security monitoring and laser rangefinders.

03 / Core advantages

Core advantages

01
Three-junction power densityThree vertically stacked active regions deliver 15 W peak pulse power from a single chip, extending ranging distance and penetration.
02
Nanosecond pulse operation100 ns pulses at 0.1% duty cycle provide the time resolution needed for time-of-flight ranging.
03
Compact emitter, easy couplingA 40 μm emitting width with 22° fast-axis and 8° slow-axis divergence gives an even spot, simplifying lens shaping and assembly.
04
Wide-temperature reliabilityDesigned for demanding industrial environments across −15 to +85 °C, with strong resistance to thermal roll-off and long operating life.

04 / Core technical specifications

Core technical specifications

Wavelength
905 ± 10 nm
Output
15 W
Operating mode
Pulsed
Spectral width
7 nm FWHM
Pulse / duty
100 ns / 0.1%
Drive
6 A
Thermal control
-15–85 °C
Package
Three-Junction Pulsed Laser Chip
Output interface
Free-space / package dependent

04 / Project integration

Integration essentials

Drive
6 A
Thermal control
-15–85 °C
Package
Three-Junction Pulsed Laser Chip
Output interface
Free-space / package dependent
