808-100W-QCW

High-Power Laser Bar

Rugged core · High power density | The preferred source for industrial pumping and precision processing.

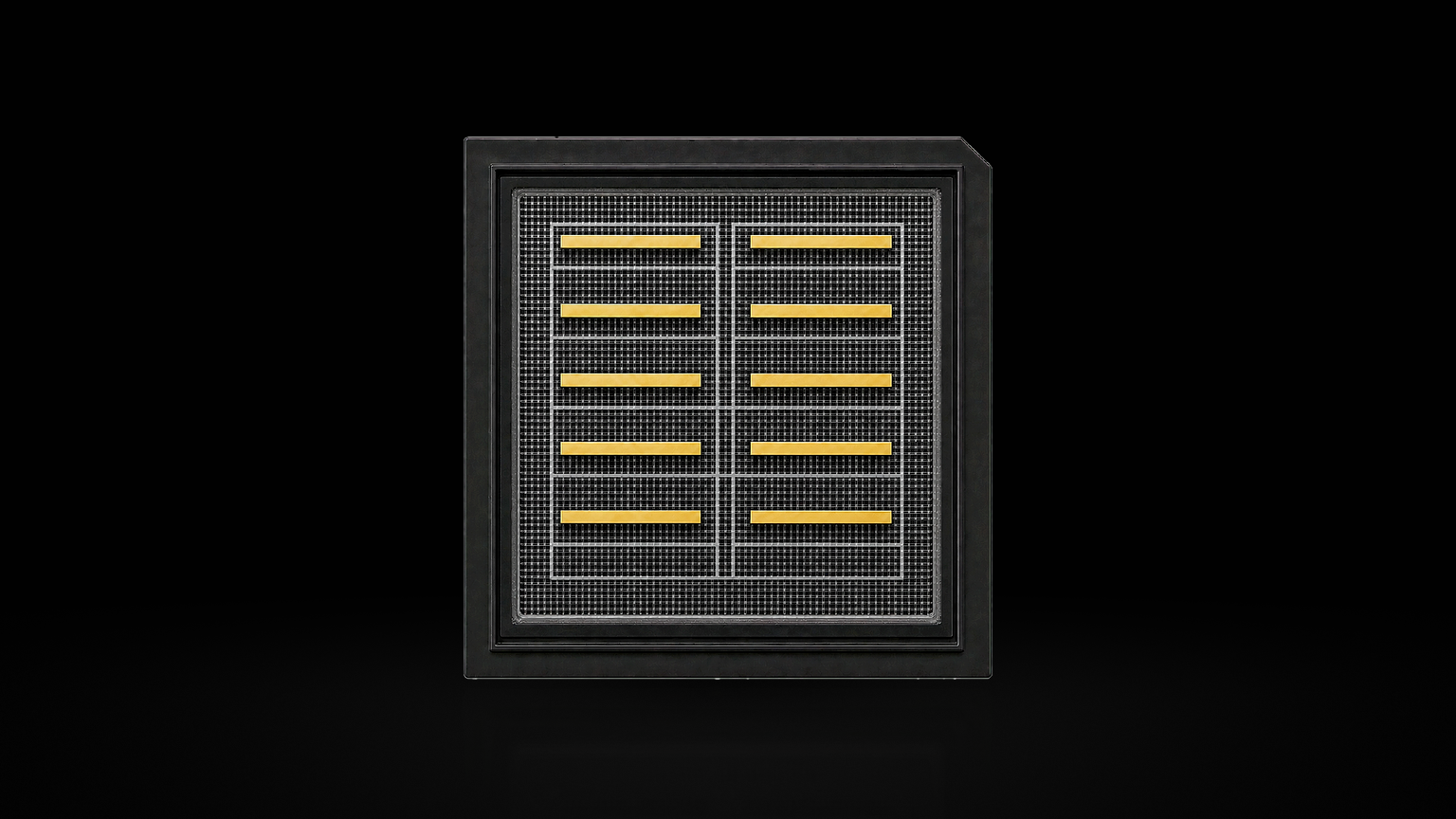

808-100W-QCW product photograph
Wavelength808 nm
Output100 W
Operating modeQCW
Spectral width3 nm
Pulse / duty30 ms / 30%

01 / Product introduction

Product introduction

This 808 nm high-power laser bar uses advanced quantum-well epitaxial growth with an optimised conduction-cooled package, delivering high optical output, very high electro-optical conversion efficiency, excellent temperature stability and long service life. The 100 W variant widens the array to 47 emitters at 50% fill factor, matching the absorption peak of Nd:YAG and similar crystals for high-power pumping, industrial materials processing and medical aesthetic systems.

02 / Core application scenarios

Core application scenarios

01
Industrial laser pumpingPump sources for diode-pumped solid-state lasers (DPSSL) and fiber lasers, and for optical parametric oscillators (OPO).
02
Industrial materials processingFine plastic and metal welding, surface heat treatment, laser cladding and cutting.
03
Medical aesthetic equipment808 nm painless hair-removal systems, dermatological treatment and infrared therapy equipment.

03 / Core advantages

Core advantages

01
Efficient heat removal, high reliabilityA conduction-cooled structure with hard-solder eutectic bonding gives low thermal resistance, strong thermal-shock tolerance and long operating life.
02
Precise beam controlOptimised divergence of 35° fast axis and 8° slow axis with a 100 μm emitting width gives an even spot, easing downstream micro-optic collimation and system coupling.
03
Scaled optical output100 W QCW output at 100 A drive from a 47-emitter array, with spectral width held to 3 nm.
04
In-house IDM productionA fully self-controlled III-V compound semiconductor platform allows cavity length, emitter count and fill factor to be customised to requirement.

04 / Core technical specifications

Core technical specifications

Wavelength
808 nm
Output
100 W
Operating mode
QCW
Spectral width
3 nm
Pulse / duty
30 ms / 30%
Drive
100 A / 1.9 V
Thermal control
15–35 °C
Package
High-Power Laser Bar
Output interface
Free-space / package dependent

04 / Project integration

Integration essentials

Drive
100 A / 1.9 V
Thermal control
15–35 °C
Package
High-Power Laser Bar
Output interface
Free-space / package dependent
